13' Chestnut Model ID

[Chuck Cossaboom]

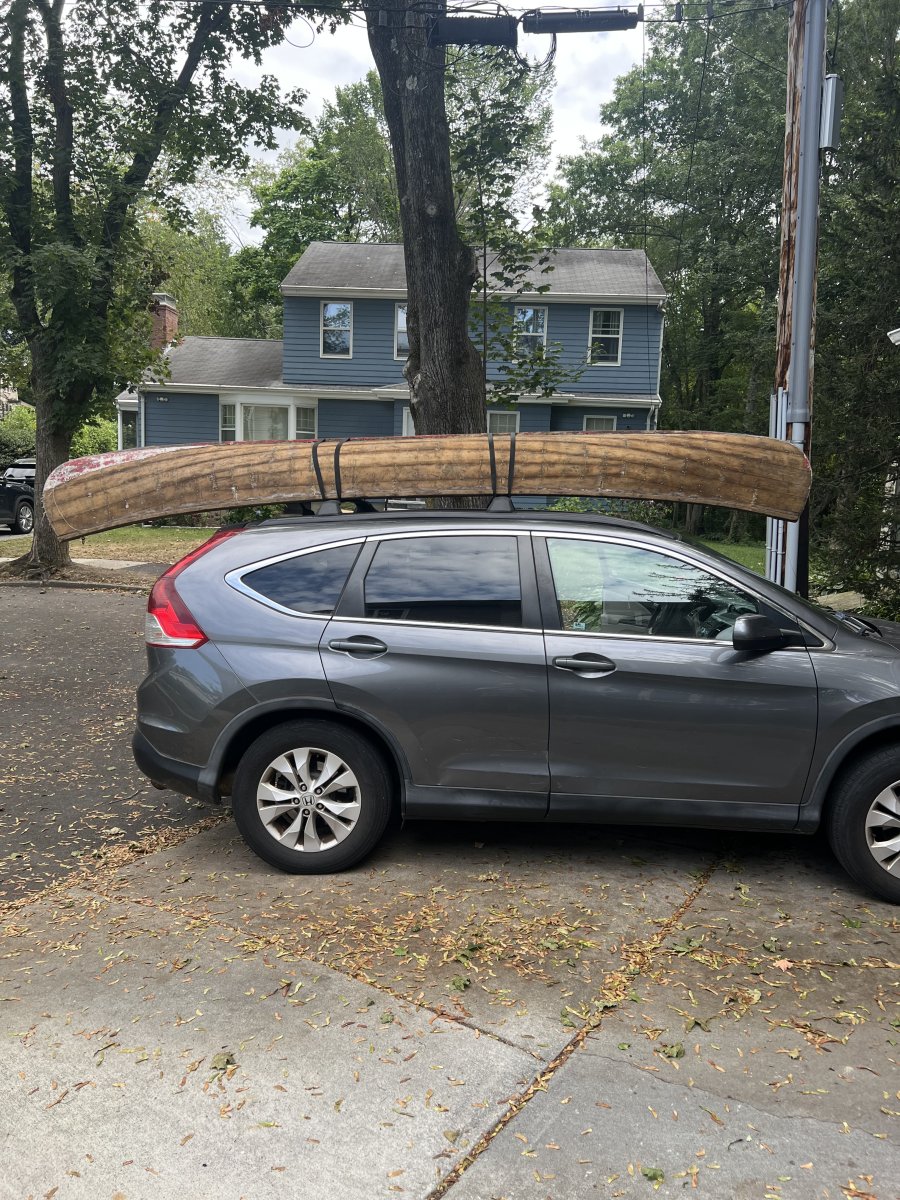

Recently gifted a 13' Chestnut Canoe
Went through the catalogues on the WCHA members site and could not find a match so I decided to post the dimensions and see if anyone had any ideas:
Length 13', Width 29" (from outside outwale), Depth 11 to top of thwart 12 to top of inwale,
Ribs are 2 1/2 tapered to 1 1/2, 1/4 thick and not rounded.
Rib spacing is 1 1/2

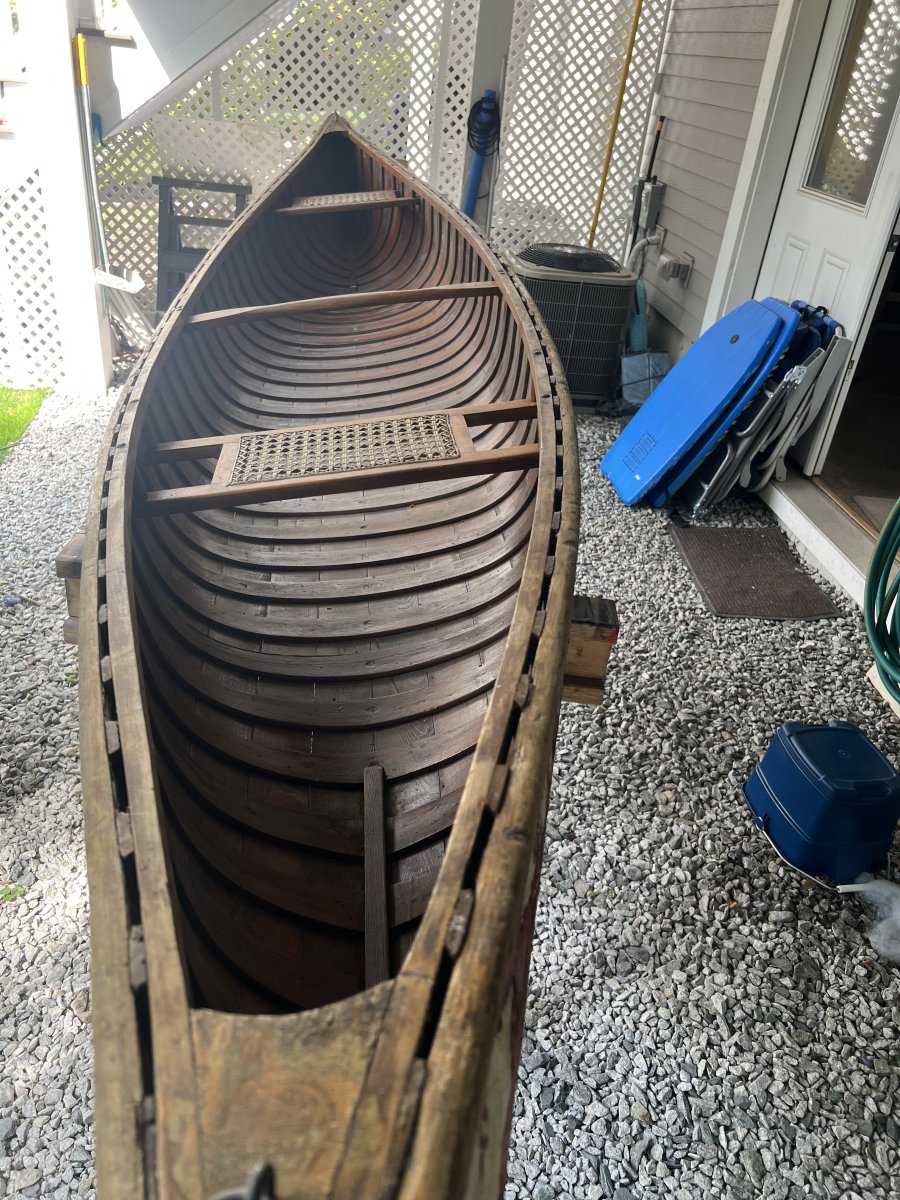

Decks are very small 3" wide X 6" long, the decal continues off the deck on to the inwale.
All hardware is slotted brass
Standard Keel (not the chestnut shoe keel)

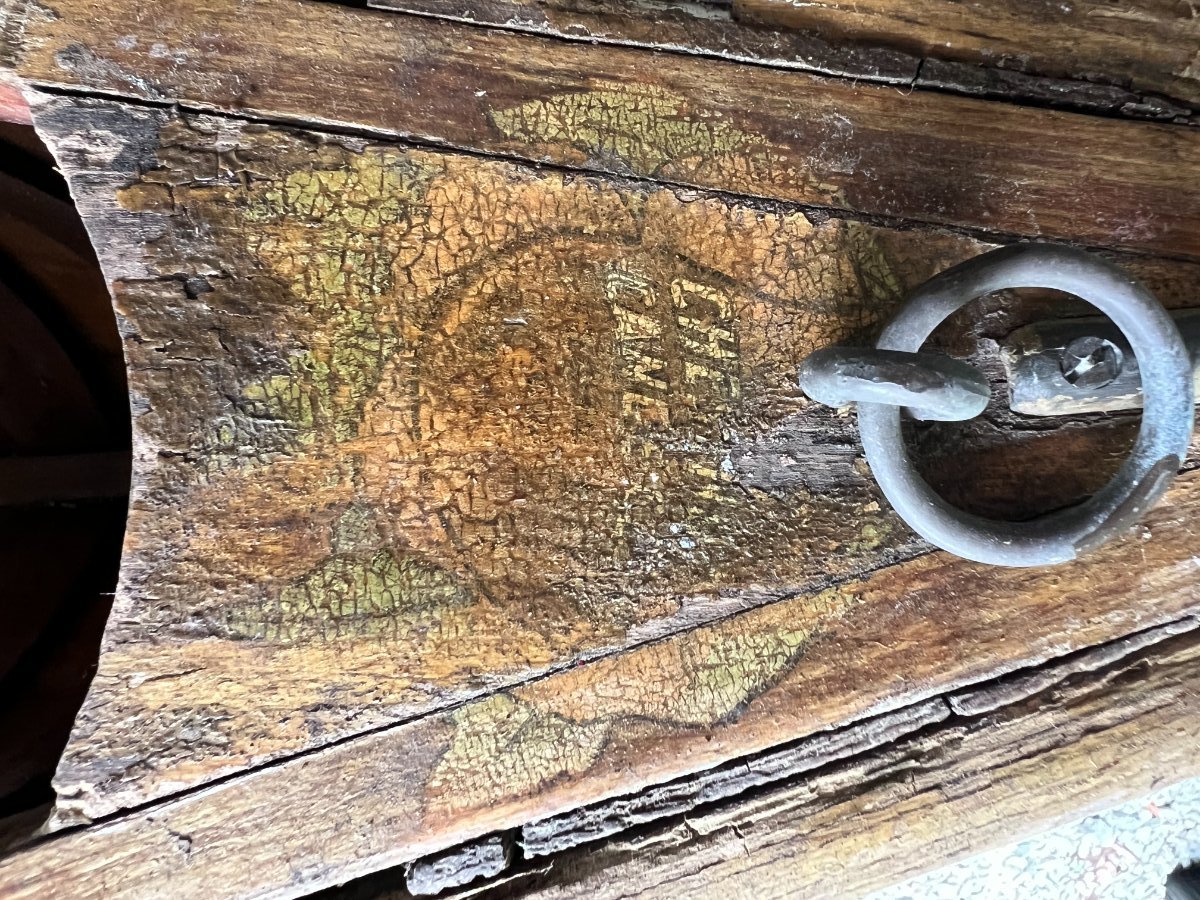

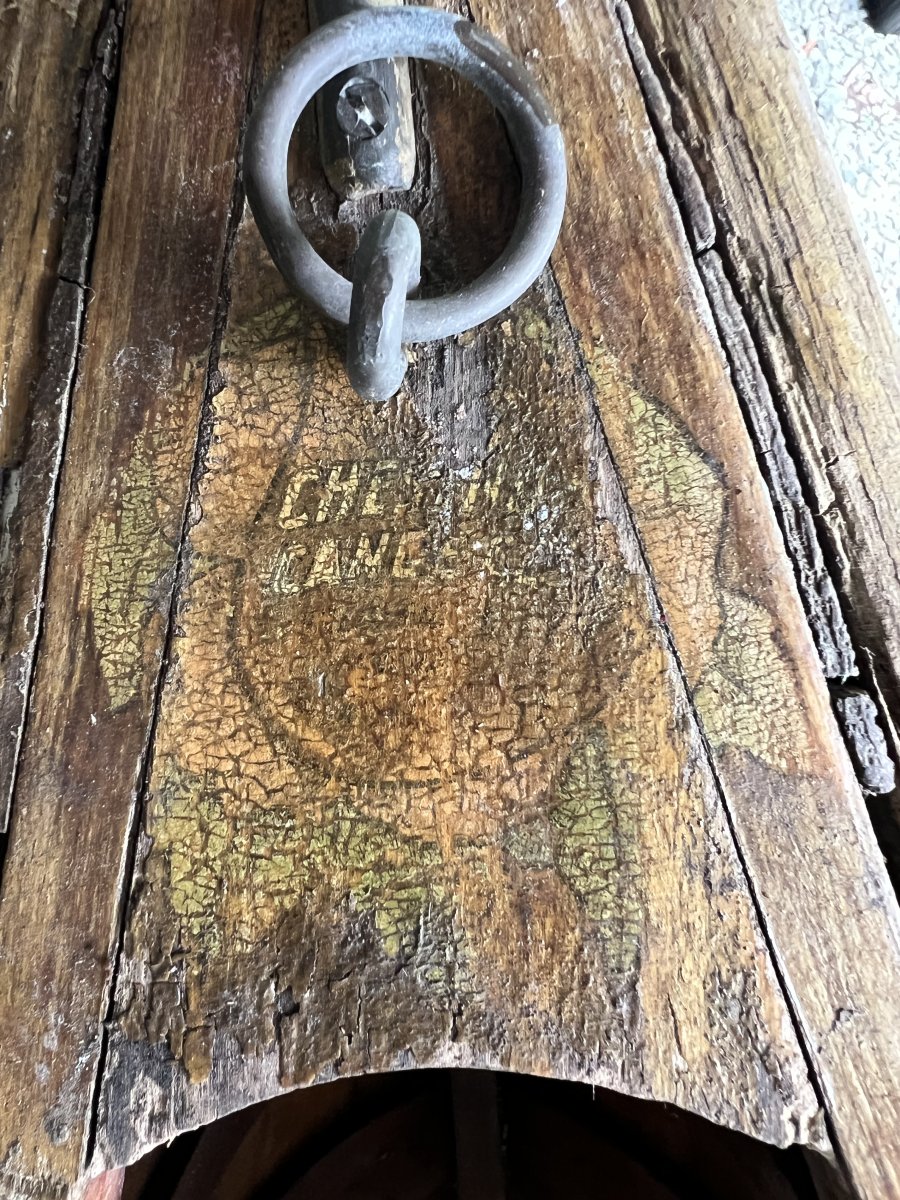

Tried to clean the decal but stopped, don't thing I can do anymore without damaging
The SN for what its worth is 6873 13 then scratched in is OMAO

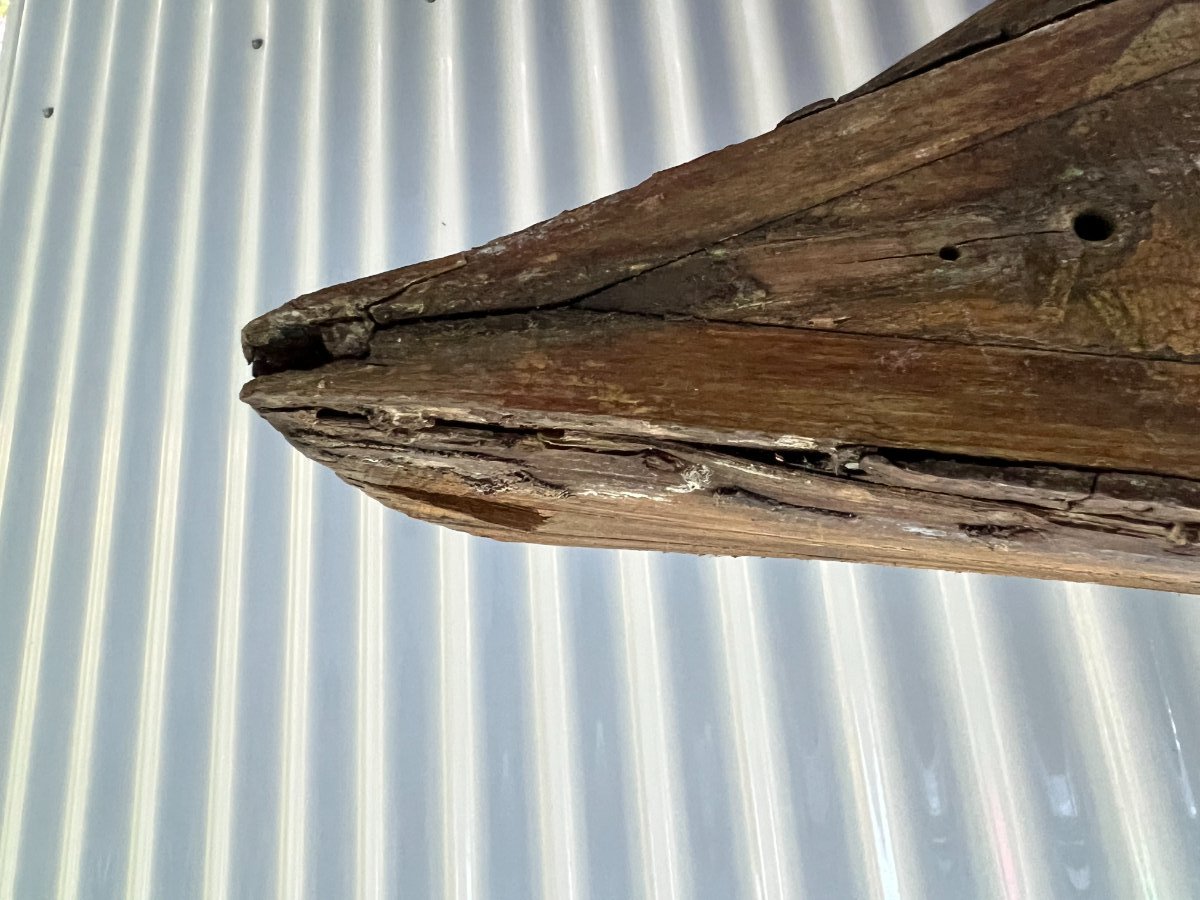

Over all in nice shape, I removed the original canvas - 1 broken rib - stem tip on stern needs work and outwales will need to be replaced.
Yes I will keep the original decal.



[Dan Miller]

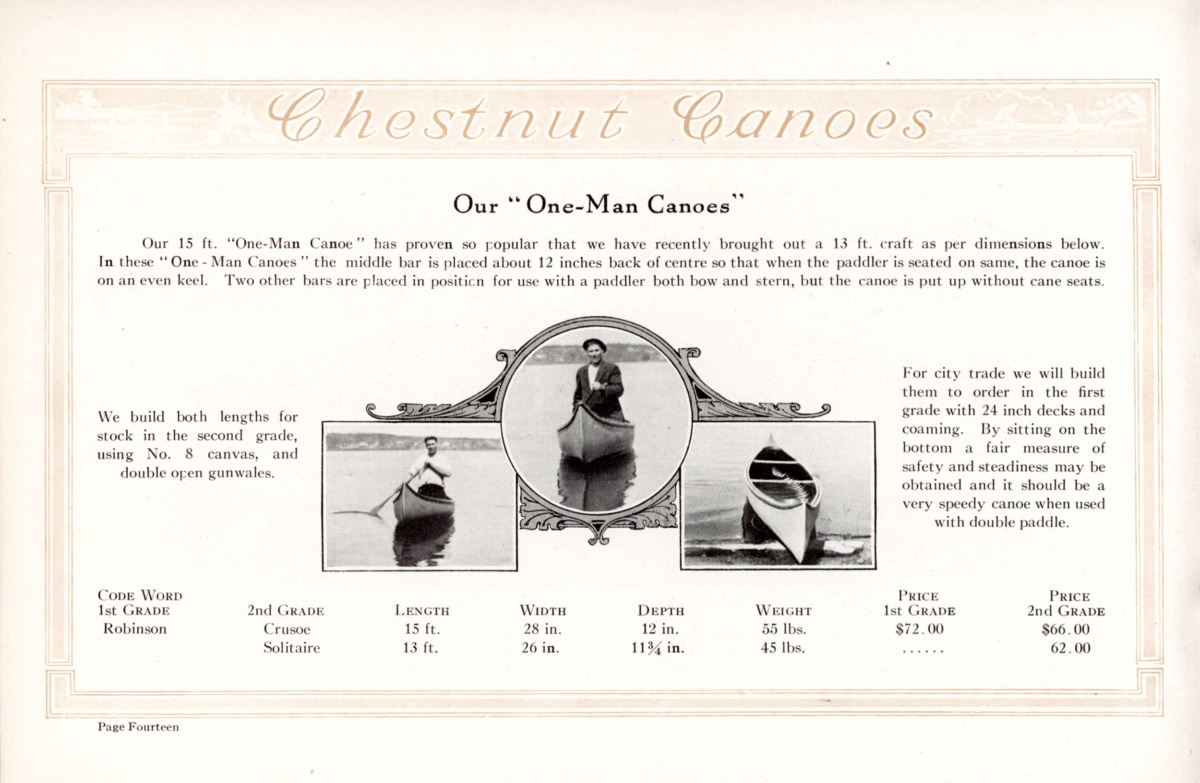

The only 13' canoe Chestnut listed was the Solitaire model One Man Canoe, which was offered ca 1928 - ca 1955.

For more about Chestnut model identification, see https://woodencanoemuseum.org/builder-history/chestnut-canoe-company



[Chuck Cossaboom]

Thanks Dan I did see that but it was my understanding was that the Solitaire did not come with seats and that center thwart was set a bit forward of center. The inwale of this one does not appear to have been altered.
The seats are set very low and this looks to be a very tender.
The width is also off unless I'm measuring it incorrectly.
Wondering if we know of any other documented 13' Solitaire's out there and if so do they have the tiny decks?



[Dan Miller]

Chestnut managed to provide us with more enigmas than perhaps any other canoe manufacturer.

Regarding measurements:

• Chestnut played a little fast and loose with catalog specs, so don't hold the published dimensions as gospel
• Beam should be measured at the widest part of the canoe (below any tumblehome). For Chestnuts, measuring outside-outside of the outwales is usually a good approximation.

Regarding tiny decks - yes, I've seen a few where the decal overlaps the inwales.

Could Chestnut have built an uncatalogued 13' canoe? Certainly. Old Town did so with the early Molitor model.

Someone on the forums had a one-man Chestnut some time ago. I thought it might have been Fitz, but a search didn't yield anything. Perhaps Benson with his superhuman search skills can shed light. My recollection was that it was very tender canoe.

All that to say, I really can't answer all your questions with any confidence.
Dan
