Old Town 18 40690

[James Carr]

Hello

Do you have the build sheet for Old Town 18 40690?

Thanks

James



[Benson Gray]

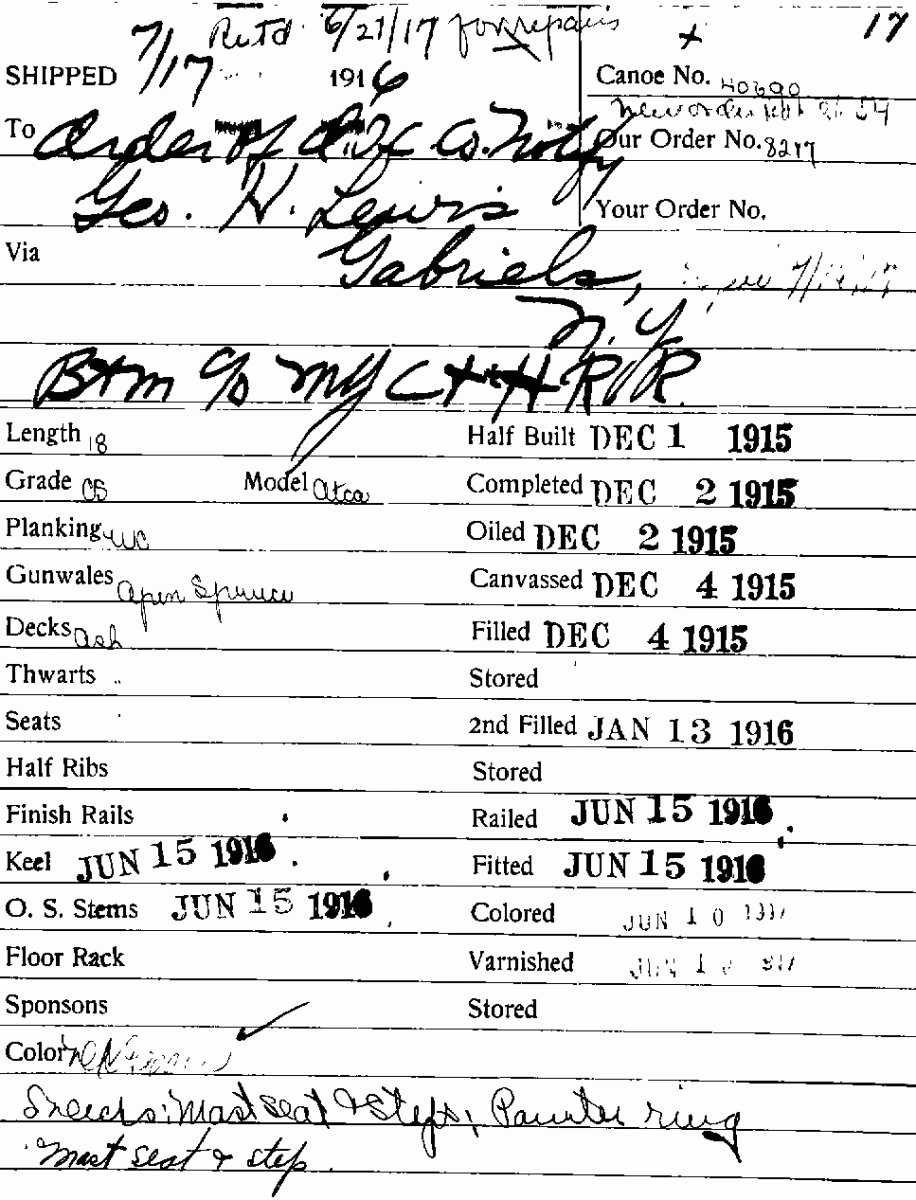

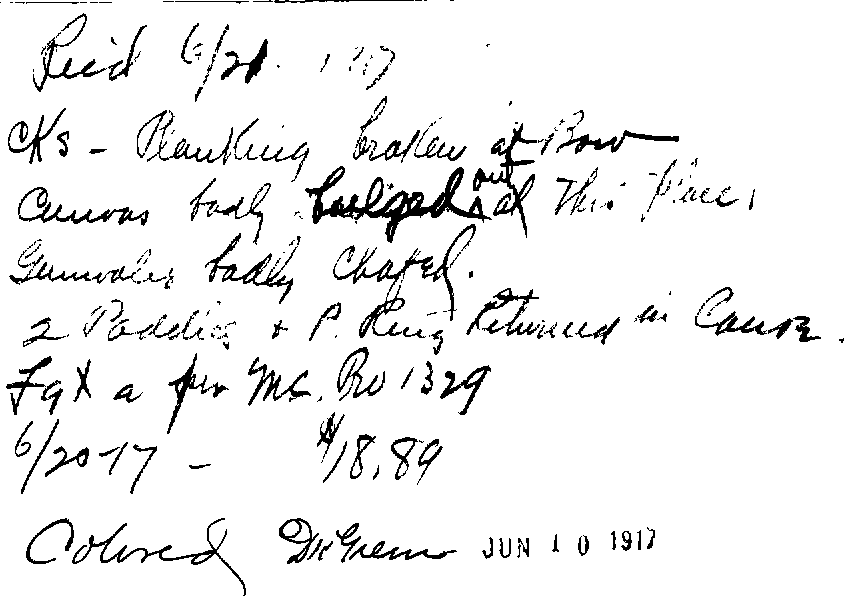

The Old Town canoe with serial number 40690 is an 18 foot long, CS (common sense or middle) grade, Otca model with red western cedar planking, open spruce gunwales, ash decks, ash thwarts, ash seats, a keel, outside stems, a mast seat, mast step, and painter ring. It was built between December, 1915 and June, 1916. The original exterior paint color was dark green. It shipped on July 17th, 1916 to Gabriels, New York. The back side of the record indicates that it returned in June, 1917 for repairs. Scans showing both sides of this build record can be found below.

These scans and several hundred thousand more were created with substantial grants from the Wooden Canoe Heritage Association (WCHA) and others as you probably know well. A description of the project to preserve these records is available at http://www.wcha.org/catalogs/old-town/records/ if you want more details. I hope that you will donate, join or renew your membership to the WCHA so that services like this can continue. See http://www.wcha.org/about-wcha to learn more about the WCHA and http://www.wcha.org/store/membership to renew.

It is also possible that you could have another number or manufacturer this description doesn't match the canoe. Feel free to reply here if you have any other questions.

Benson



[James Carr]

Thanks!
